SK1500 Datasheet - Semtech Corporation

SK1500 1:5 Signal Distribution

The SK1500 is an extremely fast, stable, and accurate low skew 1:5 clock / signal distributor featuring a synchronous enable, which allows the outputs to be turned off and on without the risk of an unpredictable output pulse. The D - flip-flop is triggered on the falling edge of the clock. The SK150.

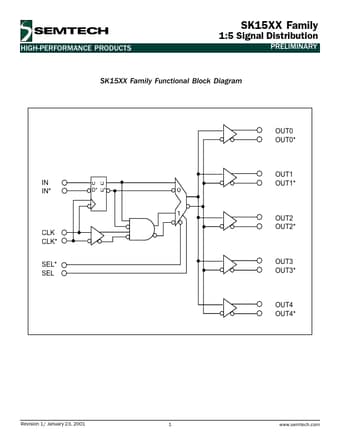

SK15XX Family 1:5 Signal Distribution HIGH-PER.ORMANCE PRODUCTS PRELIMINARY SK15XX .amily .unctional Block Diagram OUT0 OUT0 IN IN D Q D Q 0 1 OUT1 OUT1 CLK CLK SEL SEL OUT2 OUT2 OUT3 OUT3 OUT4 OUT4 Revision 1/ January 23, 2001 1 www.semtech.com SK15XX Family 1:5 Signal Distribution HIGH-PER.ORMANCE PRODUCTS SK15XX .amily Product Selection Guide 1:5 Signal Distribution 3 GHz Logic .amily Power Supply Open Emitter l l l l l Output Co.

SK1500 Features

* clock. The SK1502 uses 50 Ω outputs with source /sink capability, and is optimized for applications that require:

* Point to point, double terminated, timing critical lines PRELIMINARY .eatures

* 1:5 Clock/Data Driver 3 GHz Fmax 3.3V / 5.2V Compatible Output Op

SK1500 Datasheet (721.38 KB)

Preview of SK1500 PDF
SK1500 Datasheet Preview Page 2 SK1500 Datasheet Preview Page 3

Datasheet Details

Part number:

SK1500

Manufacturer:

Semtech Corporation

File Size:

721.38 KB

Description:

1:5 signal distribution.
