SK1904 - 1:9 Signal Distribution

PRELIMINARY .eatures The SK1900 is an extremely fast, stable, and accurate low skew 1:9 clock / signal distributor featuring a synchronous enable, which allows the outputs to be turned off and on without the risk of an unpredictable output pulse.

The D - flip-flop is triggered on the falling edge o

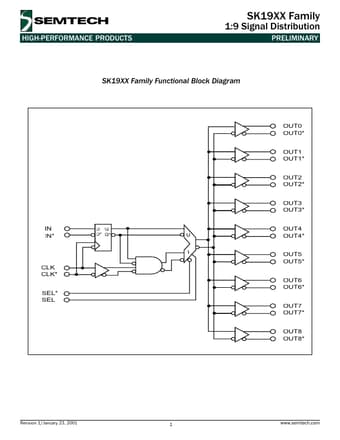

1:9 Signal Distribution HIGH-PER.ORMANCE PRODUCTS PRELIMINARY SK19XX .amily SK19XX .amily .unctional Block Diagram OUT0 OUT0 OUT1 OUT1 OUT2 OUT2 OUT3 OUT3 IN IN D Q D Q 0 1 OUT4 OUT4 OUT5 OUT5 OUT6 OUT6 OUT7 OUT7 OUT8 OUT8 CLK CLK SEL SEL Revision 1/January 23, 2001 1 www.semtech.com 1:9 Signal Distribution HIGH-PER.ORMANCE PRODUCTS SK19XX .amily Product Selection Guide 1:9 Signal Distribution 3 GHz Logic .amily Powe
