1N5550US Standard Recovery Rectifier Diode

1N5550US Description

1N5550US THRU 1N5554US Surface Mount Hermetically Sealed Standard Recovery Rectifier Diode POWER DISCRETES .
Quick reference data VR = 200 - 1000V IF = 5.

1N5550US Features

* Low reverse leakage current Hermetically sealed in fused metal oxide Good thermal shock resistance Low forward voltage drop Avalanche capability These products are qualified to MIL-PRF-19500/420. They can be supplied fully released as JAN, JANTX, and JANTXV versions. Absolute Maximum Ratings Electr

📥 Download Datasheet

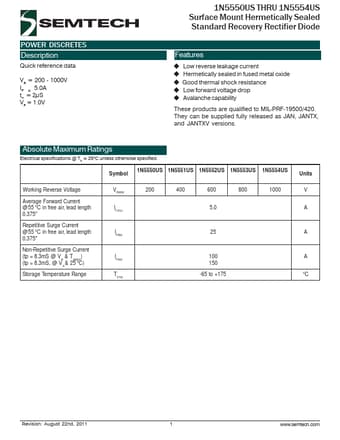

Preview of 1N5550US PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5550US
Manufacturer
Semtech
File Size
183.34 KB
Datasheet
1N5550US_Semtech.pdf
Description
Standard Recovery Rectifier Diode
