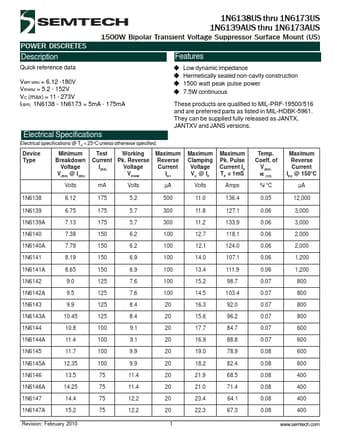

1N6159US Features
* Quick reference data Low dynamic impedance VBR MIN = 6.12 -180V VRWM = 5.2 - 152V VC (max) = 11 - 273V I(BR) 1N6138 - 1N6173 = 5mA - 175mA Hermetically sealed non-cavity construction 1500 watt peak pulse power 7.5W continuous These products are qualified to MIL-PRF-19500/516 and are preferred pa
Datasheet Details
1N6159US, 1N6138US
Semtech
40.33 KB
1500w bipolar transient voltage suppressor surface mount.
This datasheet PDF includes multiple part numbers: 1N6159US, 1N6138US.
Please refer to the document for exact specifications by model.
