1N6160 Datasheet 1500W Bipolar Transient Voltage Suppressors

Manufacturer: SEMTECH

Download the 1N6160 datasheet PDF. This datasheet also includes the 1N6138 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

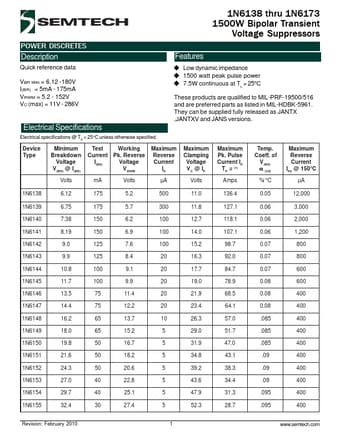

1N6160 1500w bipolar transient voltage suppressors by SEMTECH - Datasheet Preview — Note: The manufacturer provides a single datasheet file (1N6138-Semtech.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	1N6160
Manufacturer	SEMTECH
File Size	87.14 KB
Description	1500W Bipolar Transient Voltage Suppressors
Datasheet	1N6160 Datasheet

Overview

1N6138 thru 1N6173 1500W Bipolar Transient Voltage Suppressors POWER.

Key Features

Quick reference data VBR MIN = 6.12 -180V I(BR) = 5mA - 175mA VRWM = 5.2 - 152V VC (max) = 11V - 286V Electrical Specifications Low dynamic impedance 1500 watt peak pulse power 7.5W continuous at TL = 25°C These products are qualified to MIL-PRF-19500/516 and are preferred parts as listed in MIL-HDBK-5961. They can be supplied fully released as JANTX ,JANTXV and JANS versions. Electrical specifications @ TA = 25°C unless otherwise specified. Device Type Minimum Breakdown Voltage V(BR) @ I(B.
