ESD3Z3V0BWS - ESD Protection Diode

The ESD3Z3V0BWS by Semtech is a ESD Protection Diode. Below is the official datasheet preview.

📥 Download Datasheet

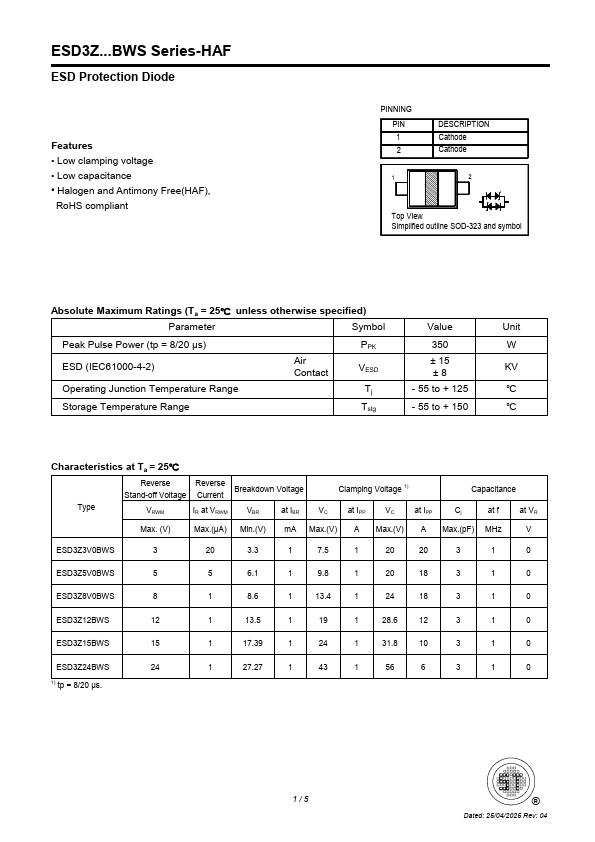

Official preview page of the ESD3Z3V0BWS ESD Protection Diode datasheet (Semtech).

Datasheet Details

Part number ESD3Z3V0BWS
Manufacturer Semtech
File Size 484.00 KB
Description ESD Protection Diode
Datasheet download datasheet ESD3Z3V0BWS-Semtech.pdf

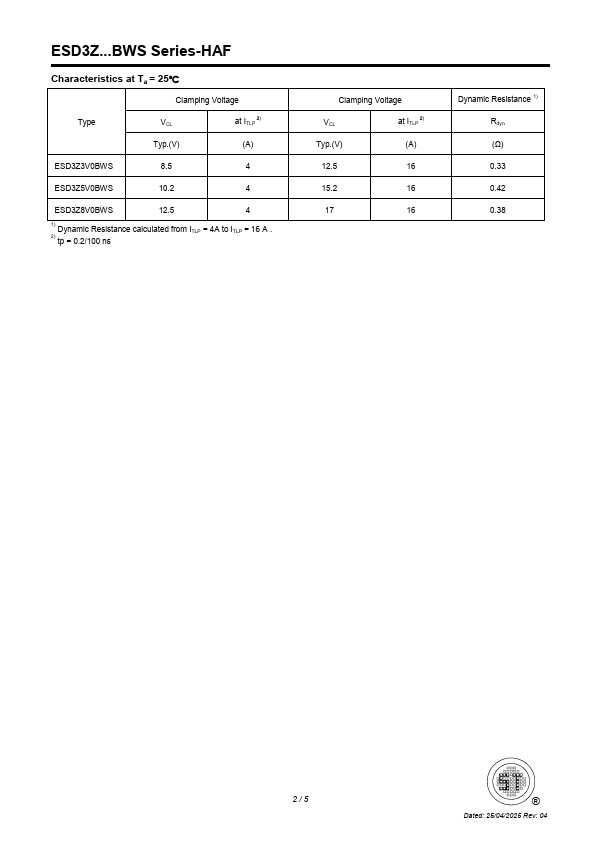

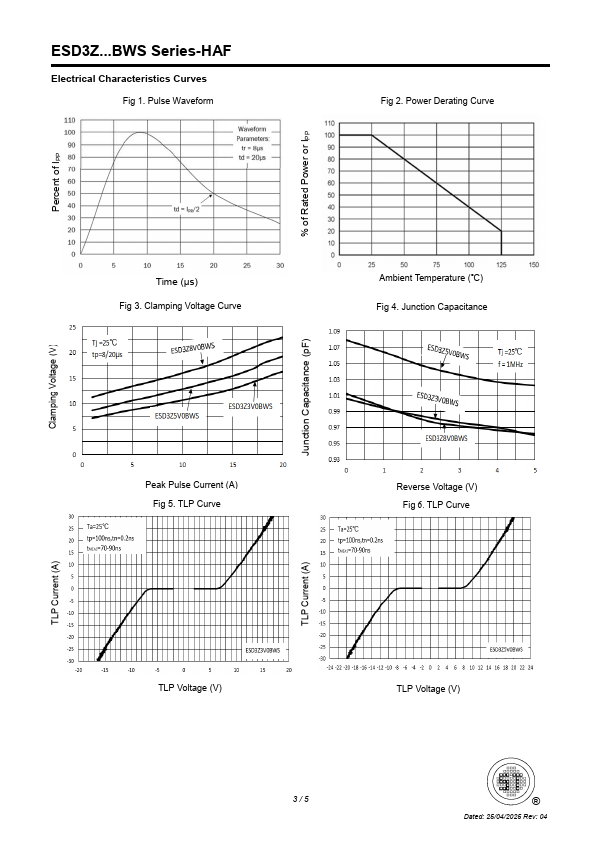

Additional preview pages of the ESD3Z3V0BWS datasheet.

ESD3Z3V0BWS Product details

Description

Cathode Cathode 2 Top View Simplified outline SOD-323 and symbol Absolute Maximum Ratings (Ta = 25℃ unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (tp = 8/20 µs) ESD (IEC61000-4-2) PPK 350 W Air ± 15 Contact VESD ±8 KV Operating Junction Temperature Range Tj - 55 to + 125 ℃ Storage Temperature Range Tstg - 55 to + 150 ℃ Characteristics at Ta = 25℃ Type Reverse Reverse Breakdown Voltage Stand-off Voltage Current VRWM IR at VRWM VBR at IB

Features
