1N5554 - HIGH CURRENT AXIAL LEAD RECTIFIERS

Datasheet Summary

Description

200-1000 VOLT, 3.0 AMP, 2000 NANOSECOND RECTIFIER -Suffix “US” denotes melf/surface mount packaging MAX.

📥 Download Datasheet

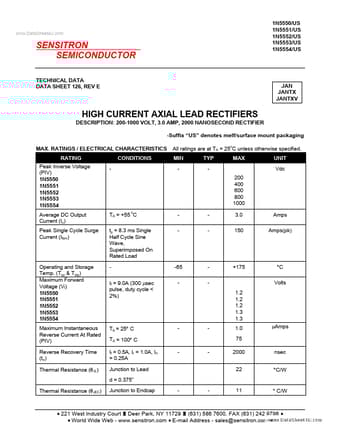

Datasheet preview – 1N5554

Datasheet Details

Part number 1N5554
Manufacturer Sensitron
File Size 175.18 KB
Description HIGH CURRENT AXIAL LEAD RECTIFIERS
Datasheet download datasheet 1N5554 Datasheet
Additional preview pages of the 1N5554 datasheet.

📁 Similar Datasheet

  • 1N5554 - Rectifiers (VMI)
  • 1N5554 - Spice Model (VMI)
  • 1N5554 - (1N5550 - 1N5554) Axial Leaded Hermetically Sealed Standard Recovery Rectifier Diode (Semtech Corporation)
  • 1N5554 - STANDARD RECOVERY RECTIFIERS (Digitron Semiconductors)
  • 1N5554 - STANDARD RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5554 - GLASS PASSIVATED SILICON RECTIFIERS (Central Semiconductor)
  • 1N5554US - VOIDLESS HERMETICALLY SEALED SURFACE MOUNT STANDARD RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5554US - Standard Recovery Rectifier Diode (Semtech)
  • 1N5550 - GLASS PASSIVATED JUNCTION RECTIFIER (General Semiconductor)
  • 1N5550 - Rectifiers (VMI)
Other Datasheets by Sensitron
  • 1N5550 - HIGH CURRENT AXIAL LEAD RECTIFIERS
  • 1N5551 - HIGH CURRENT AXIAL LEAD RECTIFIERS
  • 1N5552 - HIGH CURRENT AXIAL LEAD RECTIFIERS
  • 1N5553 - HIGH CURRENT AXIAL LEAD RECTIFIERS
  • 1N5614US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER
  • 1N5615DUS - Fast Recovery Rectifier
  • 1N5616US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER
  • 1N5618US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com SENSITRON _____ SEMICONDUCTOR TECHNICAL DATA DATA SHEET 126, REV E 1N5550/US 1N5551/US 1N5552/US 1N5553/US 1N5554/US JAN JANTX JANTXV HIGH CURRENT AXIAL LEAD RECTIFIERS DESCRIPTION: 200-1000 VOLT, 3.0 AMP, 2000 NANOSECOND RECTIFIER -Suffix “US” denotes melf/surface mount packaging MAX. RATINGS / ELECTRICAL CHARACTERISTICS RATING Peak Inverse Voltage (PIV) 1N5550 1N5551 1N5552 1N5553 1N5554 Average DC Output Current (Io) Peak Single Cycle Surge Current (Ifsm) CONDITIONS All ratings are at TA = 25oC unless otherwise specified. MIN TYP 200 400 600 800 1000 TA = +55 oC tp = 8.3 ms Single Half Cycle Sine Wave, Superimposed On Rated Load If = 9.0A (300 µsec pulse, duty cycle < 2%) 3.0 150 Amps Amps(pk) MAX UNIT Vdc Operating and Storage Temp.
