SHD117223B Datasheet, Rectifier, Sensitron

SHD117223B Features

• Rectifier
• Ultra low Reverse Leakage Current Soft Reverse Recovery at Low and High Temperature High Surge Capacity Guard Ring for Enhanced Durability and L

PDF File Details

Part number:

SHD117223B

Manufacturer:

Sensitron

File Size:

150.24kb

Download:

📄 Datasheet

Description:

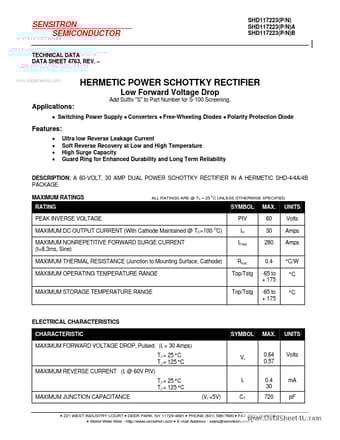

Hermetic power schottky rectifier. A 60-VOLT, 30 AMP DUAL POWER SCHOTTKY RECTIFIER IN A HERMETIC SHD-4/4A/4B PACKAGE. MAXIMUM RATINGS RATING PEAK INVERSE VOLTAGE MAXIM

SHD117223B Application

• Applications
• Switching Power Supply
• Converters
• Free-Wheeling Diodes
• Polarity Protection Diode Features:
