STK3235, Ambient Light Sensor and Proximity Sensor

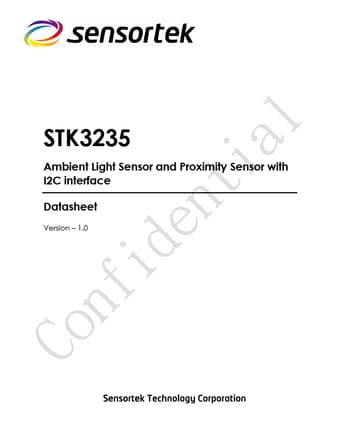

STK3235 Ambient Light Sensor and Proximity Sensor with I2C interface Datasheet Version * 1.0 STK3235 REV 1.0 1.OVERVIEW .
The STK3235 is an integrated ambient and infrared light to digital converter with I2C interface.

Applications

* Mobile Phone, Smart-phone, PDA www. sensortek. com. tw 1 @copyright 2018 Sensortek Technology Corp. STK3235 REV 1.0 2. FUNCTION BLOCK VDD I2C Interface TCON & Digital Part IR ADC ALS C OSC REF GEN LED Driver /INT SCL SDA LDR GND www. sensortek. com. tw 2 @copyright 2018 Sensortek Tech
