SAW09H0A

LED

Seoul Semiconductor

SAW09H0A Features

* Multi Junction Technology chips for high voltage operation

* 64V typical forward voltage @20mA

* Dimension : 4.0x4.0x2.2mm

* SMT solderable Key Applications

* Architectural

* Retail Display

* Commercial

* Industrial - High/Low bay

SAW09H0A General Description

* The MJT series of LEDs are designed for AC & DC(High Voltage) operation and high flux output applications.

* MJT’s thermal management performance exceeds other power LED solutions by incorporating state-of-theart SMD design and use of specialized thermal emission material.

.

SAW09H0A Datasheet (677.99 KB)

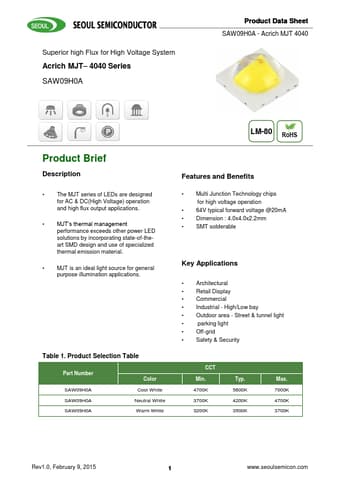

SAW09H0A Datasheet Preview — Preview of SAW09H0A PDF

Datasheet Details

Part number:

SAW09H0A

Manufacturer:

Seoul Semiconductor

File Size:

677.99 KB

Description:

Led.
Superior high Flux for High Voltage System Acrich MJT

* 4040 Series SAW09H0A Product Data Sheet SAW09H0A - Acrich MJT 4040 LM-80 RoHS Produc.
