W3218x (W3218x) Z-Power LED Series

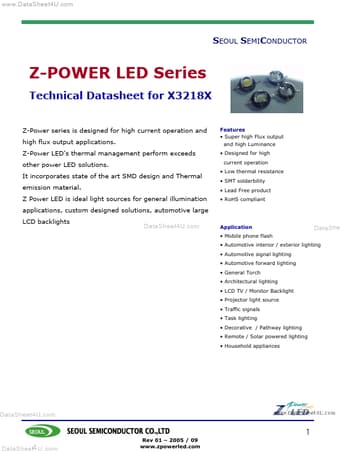

www.DataSheet4U.com SEOUL SEMICONDUCTOR Z-POWER LED Series Technical Datasheet for X3218X Z-Power series is designed for high current operation and high flux output applications. Z-Power LED's thermal management perform exceeds other power LED solutions. It incorporates state of the art SMD design and Thermal emission material. Z Power LED is ideal light sources for general illumination applications, custom designed solutions, automotive large LCD backlights DataSheet4U.com Application

W3218x Features

* Super high Flux output and high Luminance

* Designed for high current operation

* Low thermal resistance

* SMT solderbility

* Lead Free product

* RoHS compliant Dat aSh e DataSheet4U.com 1 4 U .com DataSheet Rev 01

* 2005 / 09 www.zpowerle

W32180_SeoulSemiconductor.pdf

This datasheet PDF includes multiple part numbers: W3218x, W32180. Please refer to the document for exact specifications by model.
W3218x Datasheet Preview Page 2 W3218x Datasheet Preview Page 3

Datasheet Details

Part number:

W3218x, W32180

Manufacturer:

Seoul Semiconductor

File Size:

779.60 KB

Description:

(w3218x) z-power led series.

Note:

This datasheet PDF includes multiple part numbers: W3218x, W32180.
Please refer to the document for exact specifications by model.
