BL0932B

Bi-Directional Electric Energy Neasurement Meter

BL0932B Features

* Be able to accurately measure the active power in two directions, i.e. the positive direction and the negative direction; be able to accumulate the electric energy in the identical direction

* Good linearity; and wide dynamic working range

* Improved stability of rectifying error

* Wi

BL0932B General Description

The BL0932 serial ICs are mixed-signal integrated circuits which are widely-used in electrical meters as core chips. Electrical energy meters based on this serial are characterized by simple boundary circuits, high accuracy, well stability etc. and are applied in electrical energy measurement for si.

BL0932B Datasheet (175.63 KB)

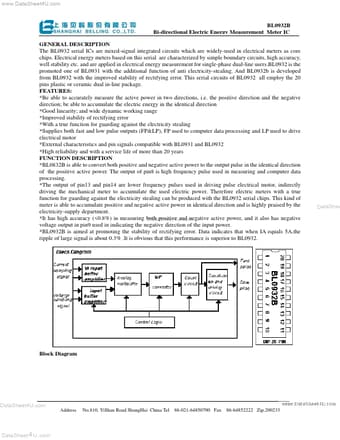

Preview of BL0932B PDF

Datasheet Details

Part number:

BL0932B

Manufacturer:

Shanghai Belling

File Size:

175.63 KB

Description:

Bi-directional electric energy neasurement meter.
