SF15 SURFACE MOUNT GALSS PASSIVATED JUNCTION RECTIFIER

📥 Download Datasheet Datasheet Preview Page 1

Description

CE CHENYI ELECTRONICS SF11 THRU SF16 SURFACE MOUNT GALSS PASSIVATED JUNCTION RECTIFIER Reverse Voltage - 50 to 400 Volts Forward Current - 1.0Ampere.

📥 Download Datasheet

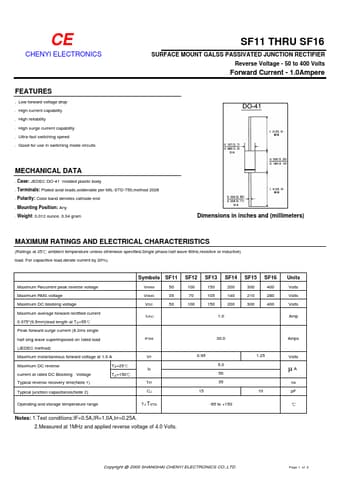

Preview of SF15 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
SF15
Manufacturer
Shanghai Lunsure Electronic Tech
File Size
153.98 KB
Datasheet
SF15_ShanghaiLunsureElectronicTech.pdf
Description
SURFACE MOUNT GALSS PASSIVATED JUNCTION RECTIFIER

Features

* . Low forward voltage drop . High current capability . High reliability . High surge current capability . Ultra-fast switching speed . Good for use in switching mode circuits MECHANICAL DATA . Case: JEDEC DO-41 molded plastic body . Terminals: Plated axial leads,solderable per MIL-STD-750,method 20
