AZ34063

0.8A Step-Down / Step-Up / Inverting DC-DC Converter

AZ34063 Features

* Operation from 3.0V to 36V Input Low Standby Current Current Limiting Output Switch Current to 0.8A Output Voltage Adjustable Operation Frequency up to 65KHz (CT=330pF) Precision 2% Reference Applications

AZ34063 General Description

The AZ34063 is a monolithic switching regulator control circuit containing the primary functions required for DC-DC converters. This device consists of internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high .

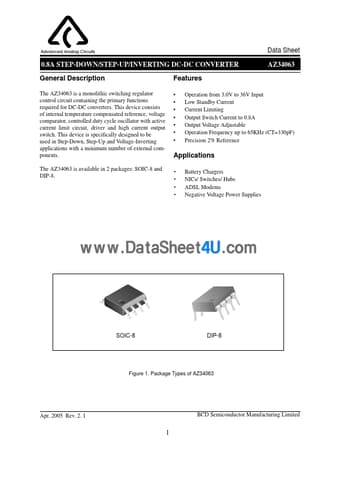

AZ34063 Datasheet (197.01 KB)

Preview of AZ34063 PDF

Datasheet Details

Part number:

AZ34063

Manufacturer:

Shanghai SIM-BCD Semiconductor

File Size:

197.01 KB

Description:

0.8a step-down / step-up / inverting dc-dc converter.
