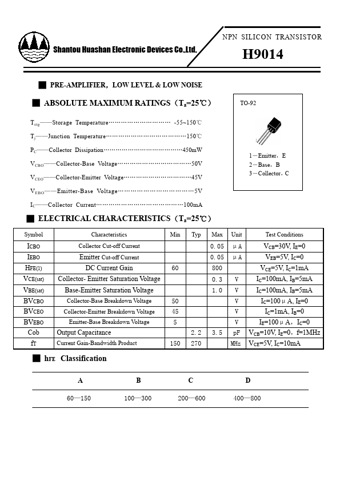

H9014 Datasheet - Shantou Huashan

H9014 NPN Silicon Transistor

Shantou Huashan Electronic Devices Co.,Ltd. NPN SILICON TRANSISTOR H9014 PRE-AMPLIFIER，LOW LEVEL & LOW NOISE ABSOLUTE MAXIMUM RATINGS（Ta=25℃） TO-92 Tstg Storage Temperature………………………… -55~150℃ Tj Junction Temperature…………………………………150℃ PC Collector Dissipation…………………………………450mW VCBO Collector-Base Voltage………………………………50V VCEO Collector-Emitter Voltage……………………………45V 1―Emitter，E 2―Base，B 3―Collector.

H9014 Datasheet (135.39 KB)
