CD7343CS, FM Stereo Multiplex Decoder

Silicore FM STEREO MULTIPLEX DECODER z GENERAL .
The CD7343CS is a monolithic integrated circuit consisting of a phase locked loop FM stereo de modulator.

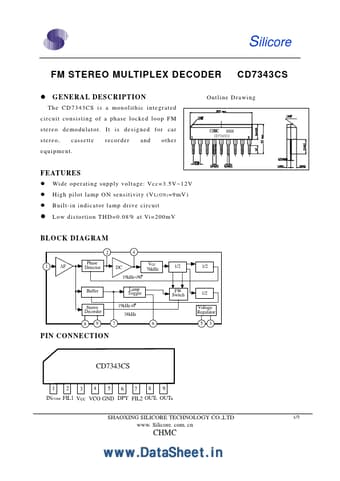

datasheet Preview Page 1 from Datasheet4u.com

CD7343CS_ShaoxingSilicoreTechnology.pdf

CD7343CS Datasheet Preview — Preview of CD7343CS PDF

Datasheet Details

Part number:

CD7343CS

Manufacturer:

Shaoxing Silicore Technology

File Size:

100.10 KB

Description:

FM Stereo Multiplex Decoder

Features

* z z z Wide op erating supp ly voltage: Vcc=3.5V~12V High pilot la mp ON se nsitivity (V L ( O N ) = 9 mV) Built-in indicator lamp drive circuit Low distortion THD=0.08% at Vi=200mV z BLOCK DIAGRAM 2 1 AF Phase Detector DC 19kHz
