CD1366CP

Video IF Processor for B/W TV

CD1366CP Features

* z z z z High input sensitivity; TYP. 30dBµ. It can be used bo th of keyed type AGC and peak type AGC. It can be operated with the power supply voltage above 7V. Since the video detector has wide bandwid th, it's suitable for the sound carrier frequency of 4.5, 5.5, 6.0, 6.5 MHz. z z As input is diff

CD1366CP General Description

The CD1366CP is a silicon monolithic integrated circuit designed for VIF section in B/W television receivers. This IC has functions CD1366CP including video IF amplifier, video low-level detector, RF AGC, IF AGC and no ise ch ancellor. This IC is encapsulated in 14 pin dual in-line package with he.

CD1366CP Datasheet (109.58 KB)

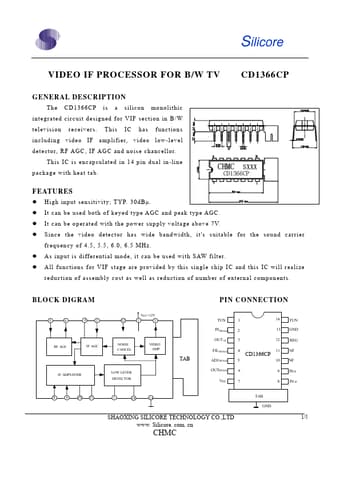

Preview of CD1366CP PDF

Datasheet Details

Part number:

CD1366CP

Manufacturer:

Shaoxing Silicore

File Size:

109.58 KB

Description:

Video if processor for b/w tv.
