WS20.5xxxx, WS205xxxx - Sharma Potentiometers

Sharma Electro Components

📥 Download Datasheet

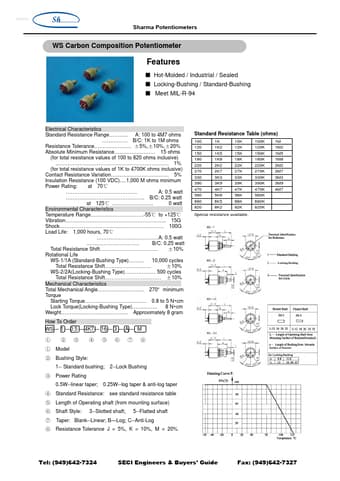

WS20.5xxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: WS20.5xxxx, WS205xxxx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	WS20.5xxxx, WS205xxxx
Manufacturer	Sharma Electro Components
File Size	461.72 KB
Description	Sharma Potentiometers
Datasheet	WS205xxxx_SharmaElectroComponents.pdf
Note	This datasheet PDF includes multiple part numbers: WS20.5xxxx, WS205xxxx. Please refer to the document for exact specifications by model.

WS20.5xxxx Product details

Features

Hot-Molded / Industrial / Sealed.
Locking-Bushing / Standard-Bushing.
Meet MIL-R-94 Electrical Characteristics Standard Resistance Range………. . A: 100 to 4M7 ohms …………… B/C: 1K to 1M ohms Resistance Tolerance…………. ……… ±5%,±10%,±20% Absolute Minimum Resistance…………………… 15 ohms (for total resistance values of 100 to 820 ohms inclusive) ………………………………………………………… 1% (for total resistance values of 1K to 4700K ohms inclusive) Contact Resistance Variation………. …………………… 5% Insulation Resistance.
