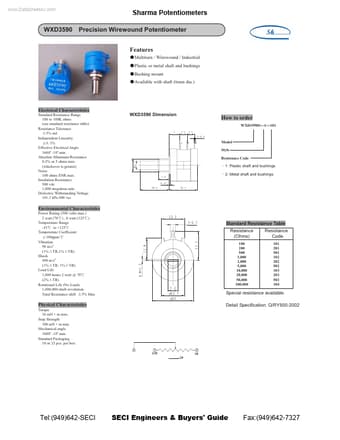

WXD3590
Features
ƽMultiturn / Wirewound / Industrial ƽPlastic or metal shaft and bushings ƽBushing mount ƽAvailable with shaft (6mm dia.)
Electrical Characteristics
Standard Resistance Range 100 to 100K ohms (see standard resistance table) Resistance Tolerance f5% std. Independent Linearity f% Effective Electrical Angle 3600嘙-10嘙min. Absolute Minimum Resistance 0.2% or 5 ohms max. (whichever is greater) Noise 100 ohms ENR max. Insulation Resistance 500 vdc 1,000 megohms min. Dielectric Withstanding Voltage 101.3 k Pa 900 vac
WXD3590 Dimension
How to order
WXD3590Sü1ü101
Model Style Resistance Code
̢1: Plastic shaft and bushings
̢2: Metal shaft and bushings
Environmental Characteristics
Power Rating (500 volts max.) 2 watt (70ć) , 0 watt (125ć) Temperature Range -55ć to +125ć Temperature Coefficient f100ppm/ć Vibration 98 m/s2 (1%TR;1%VR) Shock 490 m/s2 (1%TR; 1%VR) Load Life 1,000 hours 2 watt @ 70ć (2%TR) Rotational...
