GL100MN1MPx - High Power Output Infrared Emitting Diode

GL100MN1MPx Description

GL100MN1MPx GL100MN1MPx Surface Mount Type, High Power Output Infrared Emitting Diode * .

GL100MN1MPx Features

* 1. 2. 3. 4. 5. 6. 7. Compact and thin SMD package Top view and side view mountable Plastic mold with resin lens Peak emission wavelength: 940 nm TYP. Narrow directivity angle (Δθ ±10° TYP. ) High power output (φ e: 6.0 mW MAX. ) Lead free and RoHS directive compliant
* Agency Approvals/Compliance

GL100MN1MPx Applications

* 1. 2. 3. 4. 5. 6. 7. Office automation equipment Audio visual equipment Home appliances Telecommunication equipment Measuring equipment Tooling machines Computers www. DataSheet4U. com Notice The content of data sheet is subject to change without prior notice. In the absence of confirmation by devic

📥 Download Datasheet

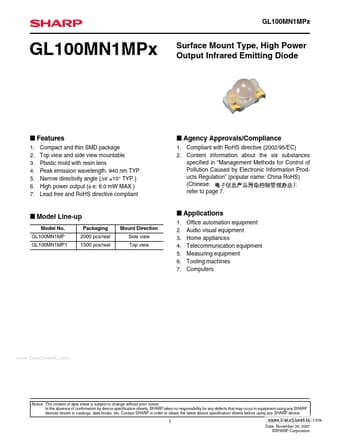

Preview of GL100MN1MPx PDF
datasheet Preview Page 2 datasheet Preview Page 3
