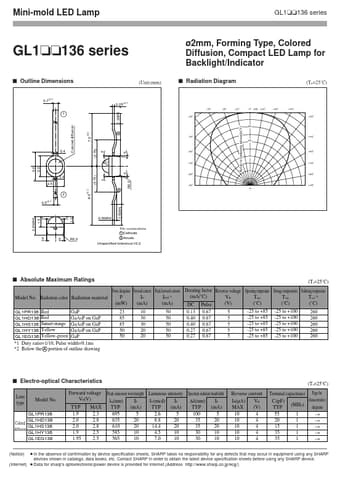

Mini-mold LED Lamp GL1tt136 series GL1tt136 series s Outline Dimensions 0.7±0.1 ø2mm, Forming Type, Colored Diffusion, Compact LED Lamp for Backlight/Indicator (Unit:mm) s Radiation Diagram (Ta=25˚C) 0.25±0.1 -30˚ -20˚ -10˚ 0˚ 100 +10˚ +20˚ +30˚ +40˚ 1.2MIN 1 -40˚ Colored diffusion -50˚ Relative luminous intensity(%) 80 +50˚ 60 7.0±0.5 (3.75) A 5˚ 0.4 5˚ -60˚ +60˚ 40 +70˚ 20 +80˚ R1.0 -70˚ 4.0 3.0 5˚ 5˚ 0.4 2.5 2 0.5 ±0.1 (3.75) -80˚ R0.3 -90˚ 0 +90˚ 8.5±0.5 2.6
GL1PR136_SharpElectrionicComponents.pdf
Datasheet Details
Part number:
GL1PR136
Manufacturer:
Sharp Electrionic Components
File Size:
99.20 KB
Description:
2mm/ forming type/ colored diffusion/ compact led lamp.
