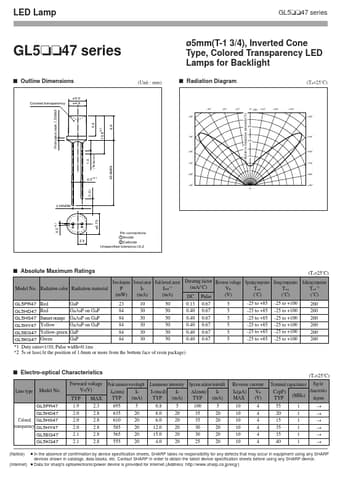

LED Lamp GL5tt47 series GL5tt47 series s Outline Dimensions ø5.0 ø4.9 ø5mm(T-1 3/4), Inverted Cone Type, Colored Transparency LED Lamps for Backlight (Unit : mm) s Radiation Diagram (Ta=25˚C) Colored transparency Protruded resin 1.5MAX -30˚ -40˚ -20˚ -10˚ 0˚ 100 +10˚ +20˚ +30˚ +40˚ Relative luminous intensity(%) 5.6 6.8 10.6±0.5 80 +50˚ 60 -50˚ -60˚ +60˚ 40 +70˚ 20 (Tie-bar cut) 1.0 -70˚ 23.0MIN -80˚ +80˚ 0.5±0.1 (1.0) -90˚ 0 +90˚ 2.54NOM 0.5±0.1 1 2 ø5.75 Pin c
GL5PR47_SharpElectrionicComponents.pdf
Datasheet Details
Part number:
GL5PR47
Manufacturer:
Sharp Electrionic Components
File Size:
83.39 KB
Description:
5mm(t-1 3/4)/ inverted cone type/ colored transparency led lamps for backlight.
