GL8PR42 Datasheet - Sharp Electrionic Components

GL8PR42 2.0X4.0mm/ Rectangle Type/ Colored Diffusion LED Lamps for Indicator

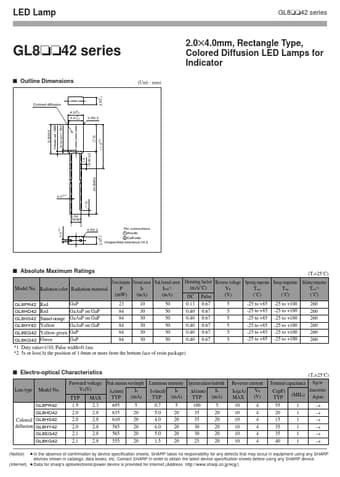

LED Lamp GL8tt42 series GL8tt42 series s Outline Dimensions 2.0-0.3 +0 2.0!4.0mm, Rectangle Type, Colored Diffusion LED Lamps for Indicator (Unit : mm) Colored diffusion 4.0+0 -0.3 3.9 +0 -0.3 Protruded resin 1.0MAX Sunken resin 0.7MAX 2-R0.2 8.0MAX (7.0) 1.0 (Tie-bar cut) 2.54 NOM 1 2 4-R0.2 (1.0) 24.0MIN 0.5±0.1 11.3±0.5 2.0-0.3 Pin connections 1 Anode 2 Cathode Unspecified tolerance:±0.2 +0.1 s Absolute Maximum Ratings Power dissipation Forward current Peak forward current P IF IFM<.

GL8PR42_SharpElectrionicComponents.pdf

GL8PR42 Datasheet Preview — Preview of GL8PR42 PDF

Datasheet Details

Part number:

GL8PR42

Manufacturer:

Sharp Electrionic Components

File Size:

80.13 KB

Description:

2.0x4.0mm/ rectangle type/ colored diffusion led lamps for indicator.
