GP1A74A1 - Compact OPIC Photointerrupter with Connector

Sharp Electrionic Components

Datasheet Details

Part number	GP1A74A1
Manufacturer	Sharp Electrionic Components
File Size	51.37 KB
Description	Compact OPIC Photointerrupter with Connector
Datasheet	GP1A74A1_SharpElectrionicComponents.pdf

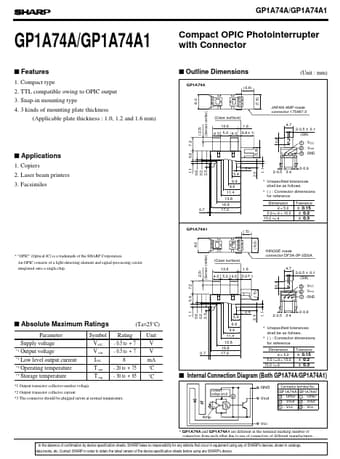

1. Compact type 2. TTL compatible owing to OPIC output 3. Snap-in mounting type 4. 3 kinds of mounting plate thickness (Applicable plate thickness : 1.0, 1.2 and 1.6 mm) Compact OPIC Photointerrupter with Connector s Outline Dimensions GP1A74A SHARP JAPAN (Unit : mm) ( 6.8) (7.8) 74 8.0 (Sensor center) JAPAN AMP made connector 175487-3 4.7 2-0.5 ± 0.1 (Slit) 3.2 1 : VCC 2 : Vout 3 : GND (Case surface) 13.6 4.3 5.0 4.3 1.6 6.8 ± 1 7.2 ( 2.3) s.
