GP1U57X - IR Detecting Unit For Remote Control

Sharp Electrionic Components

📥 Download Datasheet

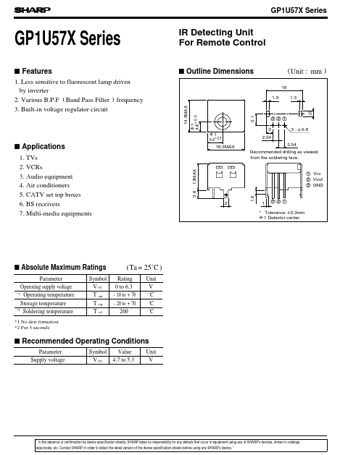

GP1U57X Datasheet Preview — Preview of GP1U57X PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: GP1U57X
Manufacturer: Sharp Electrionic Components
File Size: 36.58 KB
Datasheet: GP1U57X_SharpElectrionicComponents.pdf
Description: IR Detecting Unit For Remote Control

GP1U57X Product details

Features

1. Less sensitive to fluorescent lamp driven by inverter 2. Various B. P. F ( Band Pass Filter ) frequency 3. Built-in voltage regulator circuit IR Detecting Unit For Remote Control s Outline Dimensions 16 1.3 14.5MAX g1 4.6 ± 0.5 1.3 2.5 5.1 3 2 1 3 g1 6.6 ± 0.5 2.54 2.54 Recommended drilling as viewed from the soldering face. 12MAX 3 - φ 0.8 16.3MAX 1 Vcc 2 Vout 3 GND 1.6 2 1 3 2 1.
Tolerance :± 0.3mm g 1 Detector center ( Unit : mm ) s.
