IS488 - Built-in Amp.Type OPIC Light Detector

Name: IS488
SKU: IS488-260756

Sharp Electrionic Components

The IS488 by Sharp Electrionic Components is a Built-in Amp.Type OPIC Light Detector. Below is the official datasheet preview.

Datasheet Details

Part number	IS488
Manufacturer	Sharp Electrionic Components
File Size	54.29 KB
Description	Built-in Amp.Type OPIC Light Detector
Datasheet	IS488_SharpElectrionicComponents.pdf

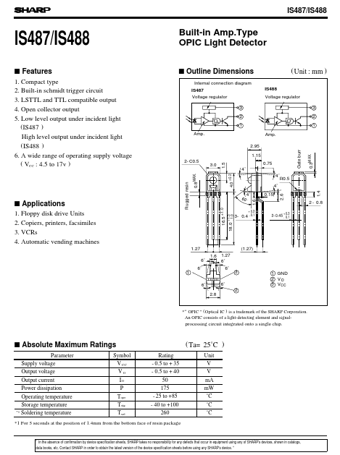

Additional preview pages of the IS488 datasheet.

1. Compact type 2. Built-in schmidt trigger circuit 3. LSTTL and TTL compatible output 4. Open collector output 5. Low level output under incident light (IS487 ) High level output under incident light ( IS488 ) 6. A wide range of operating supply voltage ( VCC : 4.5 to 17v ) Built-in Amp. Type OPIC Light Detector s Outline Dimensions Internal connection diagram IS487 Voltage regulator 3 2 1 Amp. 2.95 Gate burr 4˚ R0.5 4˚ 1.6 60 ( Unit : mm ) IS488 Voltage regulator 3 2 1 Amp. 1.15 3.0 1.5 2- C.
