LM16255 - Character Type LCD Module

Product Overview

Sharp Electrionic Components

Part number	LM16255
Manufacturer	Sharp Electrionic Components
File Size	20.49 KB
Description	Character Type LCD Module
Datasheet	LM16255 Datasheet

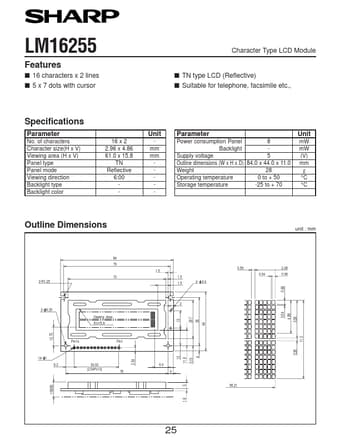

Additional preview pages of the LM16255 datasheet.

s 16 characters x 2 lines s 5 x 7 dots with cursor Character Type LCD Module s TN type LCD (Reflective) s Suitable for telephone, facsimile etc. , Specifications Parameter No. of characters Character size(H x V) Viewing area (H x V) Panel type Panel mode Viewing direction Backlight type Backlight color 16 x 2 2.96 x 4.86 61.0 x 15.8 TN Reflective 6:00 - Unit mm mm - Parameter Power consumption Panel 8 Backlight Supply voltage 5 Outline dimensions (W x H x D) 84.0 x 44.0 x 11.0 Weight 28 Oper.
