LZ0P3621 - 1/4-type Built-in Lens Color CCD Area Sensors

Sharp Electrionic Components

📥 Download Datasheet

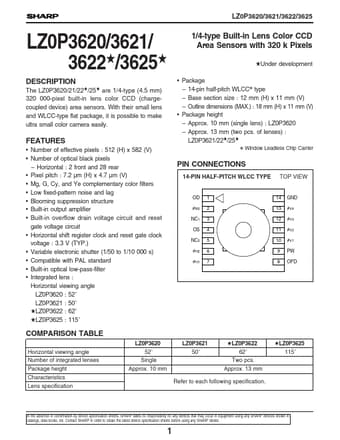

LZ0P3621 Datasheet Preview — Preview of LZ0P3621 PDF

Datasheet Details

Part number: LZ0P3621
Manufacturer: Sharp Electrionic Components
File Size: 120.46 KB
Datasheet: LZ0P3621_SharpElectrionicComponents.pdf
Description: 1/4-type Built-in Lens Color CCD Area Sensors

LZ0P3621 Product details

Description

The LZ0P3620/21/22∫/25∫ are 1/4-type (4.5 mm) 320 000-pixel built-in lens color CCD (chargecoupled device) area sensors. Package 14-pin half-pitch WLCC type Base section size : 12 mm (H) x 11 mm (V) Outline dimensions (MAX.) : 18 mm (H) x 11 mm (V) Packag

Features

Number of effective pixels : 512 (H) x 582 (V).
Number of optical black pixels.
Horizontal : 2 front and 28 rear.
Pixel pitch : 7.2 µm (H) x 4.7 µm (V).
Mg, G, Cy, and Ye complementary color filters.
Low fixed-pattern noise and lag.
Blooming suppression structure.
Built-in output amplifier.
Built-in overflow drain voltage circuit and reset gate voltage circuit.
Horizontal shift register clock and reset gat.
