PC847 - Photocoupler

PC847 Description

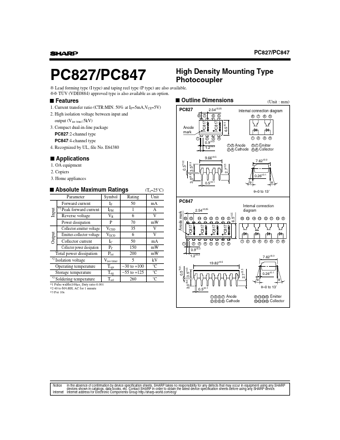

PC827/PC847 PC827/PC847 High Density Mounting Type Photocoupler ❇ Lead forming type (I type) and taping reel type (P type) are also available.❇❇ T.

PC847 Features

* 1. Current transfer ratio (CTR:MIN. 50% at IF=5mA,VCE=5V) 2. High isolation voltage between input and output (Viso (rms):5kV)
* Outline Dimensions PC827 2.54±0.25 87 65 (Unit : mm) Internal connection diagram 87 65 PC817 PC817 6.5±0.5 3. Compact dual-in-line package PC827:2-channel type

PC847 Applications

* 1. OA equipment 2. Copiers 3. Home appliances
* Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Rating Unit Forward current
* 1 Peak forward current IF IFM 50 mA 1A Input Reverse voltage VR 6 V Power dissipation P 70 mW Collector-emitter voltage VCEO 35 V Output Emitter
