PC9D10 - Ultra-high Speed Response/ 2-channel OPIC Photocoupler

Product Overview

Sharp Electrionic Components

Part number	PC9D10
Manufacturer	Sharp Electrionic Components
File Size	56.43 KB
Description	Ultra-high Speed Response/ 2-channel OPIC Photocoupler
Datasheet	PC9D10 Datasheet

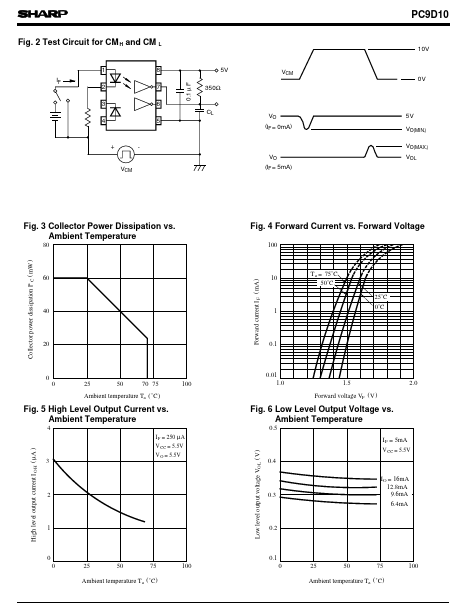

Additional preview pages of the PC9D10 datasheet.

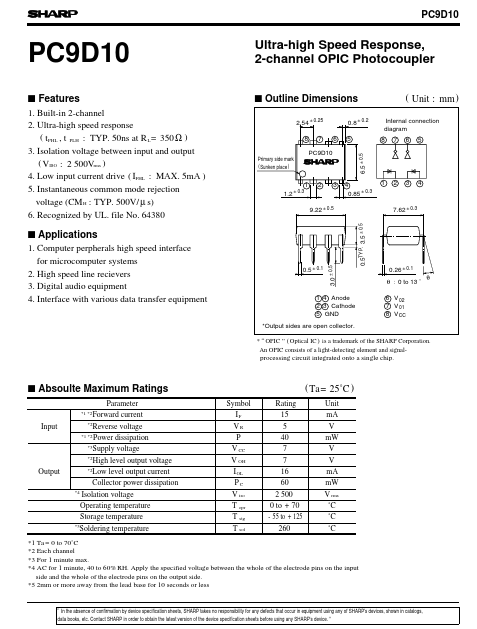

1. Built-in 2-channel 2. Ultra-high speed response ( t PHL , t PLH : TYP. 50ns at R L = 350 Ω ) 3. Isolation voltage between input and output ( VISO : 2 500Vrms ) 4. Low input current drive ( IFHL : MAX. 5mA ) 5. Instantaneous common mode rejection voltage (CM H : TYP. 500V/ µ s) 6. Recognized by UL. file No. 64380 Ultra-high Speed Response, 2-channel OPIC Photocoupler s Outline Dimensions 2.54 ± 0.25 8 Primary side mark ( Sunken place ) 1 1.2 ± 0.3 9.22 ± 0.5 0.5TYP. 3.5 ± 0.5 2 3 7 PC9D10 6 0.
