Datasheet Specifications
- Part number
- PT550F
- Manufacturer
- Sharp Electrionic Components
- File Size
- 62.66 KB
- Datasheet
- PT550F_SharpElectrionicComponents.pdf
- Description
- TO-18 Type Phototransistor with Base Terminal
Description

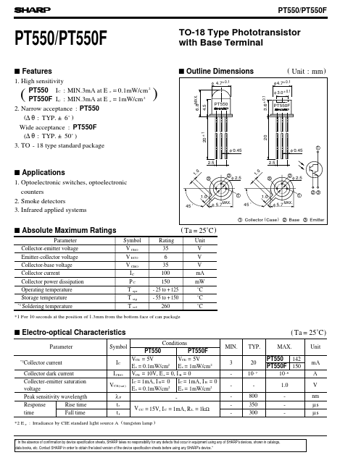

PT550/PT550F PT550/PT550F s .
Features
* 1. High sensitivity PT550 I C : MIN.3mA at E e = 0.1mW/cm 2 PT550F I C : MIN.3mA at E e = 1mW/cm 2 2. Narrow acceptance : PT550 (∆ θ : TYP. ± 6˚ ) Wide acceptance : PT550F (∆ θ : TYP. ± 50˚ ) 3. TO - 18 type standard package TO-18 Type Phototransistor with Base Terminal s Outline Dimensions φ 6.8MAApplications
* 1. Optoelectronic switches, optoelectronic counters 2. Smoke detectors 3. Infrared applied systems 0 1. 1. 0 3 3 2 φ 2.5 2 3 1.0 45 ˚ φ 5.7MAX. 1 45 ˚ 1.0 φ 5.7 MAX. 1 1 Collector ( Case ) 2 Base 3 Emitter s Absolute Maximum Ratings Parameter Collector-emitter voltage Emitter-collectorPT550F Distributors
