S21MD7T - Low Input Driving Type Phototriac Coupler

Key Features

  • 1. Low input driving current ( S11MD7T / S11MD8T / S21MD7T / S21MD8T I FT : MAX. 5mA S11MD9T /S21MD9T IFT : MAX.7mA ) 2. Pin No. 5 completely molded for external noise resistance 3. Built-in zero-cross circuit (S11MD8T/S21MD8T ) 4. High repetitive peak OFF-state voltage ( S11MD7T / S11MD8T / S11MD9T VDRM : MIN. 400V S21MD7T / S21MD8T / S21MD9T VDRM : MIN. 600V 5. Isolation voltage between input and output ( Viso : 5 000V rms ) 6. Recognized by UL, file No. E64380 s Outline Dimensions ( Unit : m.

📥 Download Datasheet

Full PDF Text Transcription for S21MD7T (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for S21MD7T. For precise diagrams, and layout, please refer to the original PDF.

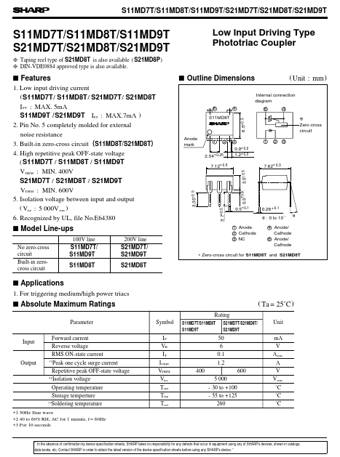

S11MD7T/S11MD8T/S11MD9T/S21MD7T/S21MD8T/S21MD9T S11MD7T/S11MD8T/S11MD9T S21MD7T/S21MD8T/S21MD9T g Taping reel type of S21MD8T is also available ( S21MD8P ) g DIN-VDE0884 ...

View more extracted text
ping reel type of S21MD8T is also available ( S21MD8P ) g DIN-VDE0884 approved type is also available. Low Input Driving Type Phototriac Coupler s Features 1. Low input driving current ( S11MD7T / S11MD8T / S21MD7T / S21MD8T I FT : MAX. 5mA S11MD9T /S21MD9T IFT : MAX.7mA ) 2. Pin No. 5 completely molded for external noise resistance 3. Built-in zero-cross circuit (S11MD8T/S21MD8T ) 4. High repetitive peak OFF-state voltage ( S11MD7T / S11MD8T / S11MD9T VDRM : MIN. 400V S21MD7T / S21MD8T / S21MD9T VDRM : MIN. 600V 5. Isolation voltage between input and output ( Viso : 5 000V rms ) 6. Recognized by UL, file No.
