S26MD02 8-Pin DIP Type SSR for Low Power Control

Sharp Electrionic Components

S26MD02 Description

S16MD01/S16MD02/S26MD01/S26MD02 S16MD01/S16MD02 S26MD01/S26MD02 s .

S26MD02 Features

* 1. Compact 8-pin dual-in-line package type 2. RMS ON-state current IT : 0.6Arms 3. Built-in zero-cross circuit (S16MD02 / S26MD02 ) 4. High repetitive peak OFF-state voltage S16MD01 / S16MD02 VDRM : MIN. 400V S26MD01 / S26MD02 VDRM : MIN. 600V 5. Isolation voltage between input and output ( Viso : 4

S26MD02 Applications

* 1. Oil fan heaters 2. Microwave ovens 3. Refrigerators 7.62 ± 0.3 0.5TYP. 3.5 ± 0.5 3.4 ± 0.5 s Model Line-ups For 100V lines No built-in zerocross circuit Built-in zerocross circuit S16MD01 S16MD02 For 200V lines S26MD01 S26MD02 3.1 ± 0.5 0.5 ± 0.1 0.26 ± 0.1 θ : 0 to 13 ˚ θ g Zero-cross cir

📥 Download Datasheet

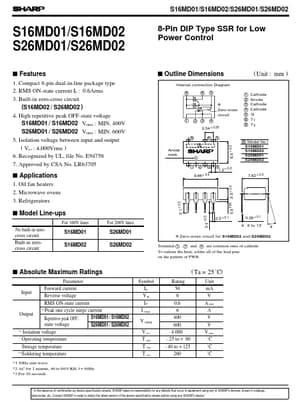

S26MD02 Datasheet Preview — Preview of S26MD02 PDF

Datasheet Details

Part number: S26MD02
Manufacturer: Sharp Electrionic Components
File Size: 66.85 KB
Datasheet: S26MD02_SharpElectrionicComponents.pdf
Description: 8-Pin DIP Type SSR for Low Power Control
