1CZ41H - PQ1CZ41H2Z

Datasheet Summary

Features

I Outline Dimensions (Unit : mm) 2.5 Maximum switching current: 1.5A G Built-in ON/OFF control function G Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence G Built-in oscillation circuit (Oscillation frequency: TYP. 300kHz) G Built-in overheat protection function, overcurrent protection function G SC-63 Surface Mount Type package G Variable output voltage (Output variable range: Vref to 35V/.
Vref to.
30V) [Po.

Sharp Electrionic

📥 Download Datasheet

Datasheet Details

Part number	1CZ41H
Manufacturer	Sharp Electrionic
File Size	74.00 KB
Description	PQ1CZ41H2Z
Datasheet	1CZ41H Datasheet
Additional preview pages of the 1CZ41H datasheet.

📁 Similar Datasheet

1CZ10 - (1CZxx) SILICON PLANAR ZENER DIODES (CDIL)
1CZ3x - SILICON PLANAR ZENER DIODES (CDIL)

Other Datasheets by Sharp Electrionic

Full PDF Text Transcription

Click to expand full text

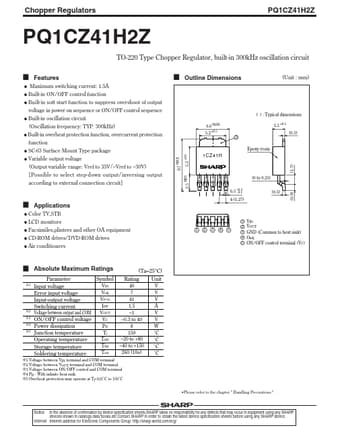

Chopper Regulators PQ1CZ41H2Z PQ1CZ41H2Z TO-220 Type Chopper Regulator, built-in 300kHz oscillation circuit I G Features I Outline Dimensions (Unit : mm) 2.5 Maximum switching current: 1.5A G Built-in ON/OFF control function G Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence G Built-in oscillation circuit (Oscillation frequency: TYP. 300kHz) G Built-in overheat protection function, overcurrent protection function G SC-63 Surface Mount Type package G Variable output voltage (Output variable range: Vref to 35V/–Vref to –30V) [Possible to select step-down output/inversing output according to external connection circuit] ( ) : Typical dimensions 6.6 5.2 MAX. 2.3 ±0.5 (0.5) 3 Epoxy resin ±0.5 5.5 ±0.5 9.7 MAX.
