* 1.Low voltage operation (Minimum operating voltage: 2.35V) 2.Output current : 1A 3.Low dissipation current (Dissipation current at no load: MAX. 2mA Output OFF-state dissipation current: MAX.5μA) 4.Low power-loss 5.Built-in overcurrent and overheat protection functions 6.Conform to Flow Soldering SC
PQ030EN01ZPH Datasheet (209.28 KB)
PQ030EN01ZPH
Sharp Electrionic
209.28 KB
Compact surface mount type low power-loss voltage regulators.
www.DataSheet4U.com

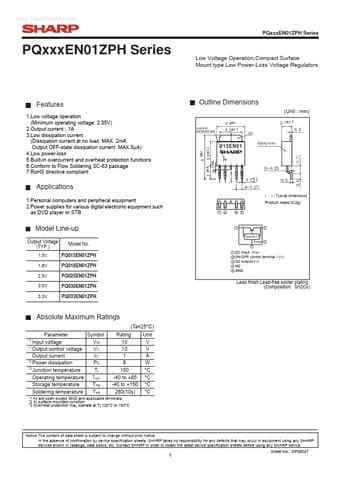

PQxxxEN01ZPH Series
PQxxxEN01ZPH Series
Low Voltage Operation,Compact Surface Mount type Low Power-Loss Voltage Regulators
Feat.
