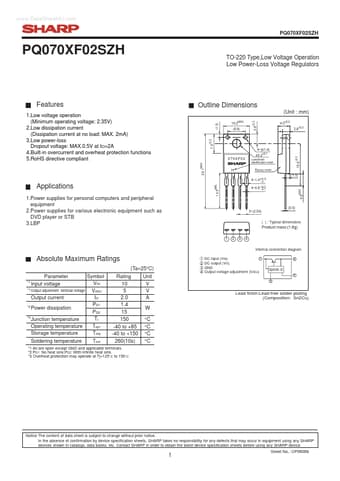

PQ070XF02SZH - Low Voltage Operation Low Power-Loss Voltage Regulators

Sharp Electrionic

Datasheet Details

Part number	PQ070XF02SZH
Manufacturer	Sharp Electrionic
File Size	168.00 KB
Description	Low Voltage Operation Low Power-Loss Voltage Regulators
Datasheet	PQ070XF02SZH_SharpElectrionic.pdf

1.Low voltage operation (Minimum operating voltage: 2.35V) 2.Low dissipation current (Dissipation current at no load: MAX. 2mA) 3.Low power-loss Dropout voltage: MAX.0.5V at IO=2A 4.Built-in overcurrent and overheat protection functions 5.RoHS directive compliant.
Outline Dimensions (Unit : mm) 3.6±0.2 (1.5) 10.2MAX. 4.5±0.2 2.8±0.2 (6.8) 7.4±0.2 4.
(ø1.4) 070XF02 Lead finish identification mark Epoxy resin 0.3 4.
1.4 +.
0 29.1MAX. H (1.5) 13.5MIN. 1.Power s.
