PQ3DZ53, PQ3DZ13 (PQ3DZ13 / PQ3DZ53) Surface Mount Type Low Power-Loss Voltage Regulator

Sharp Electrionic

Description

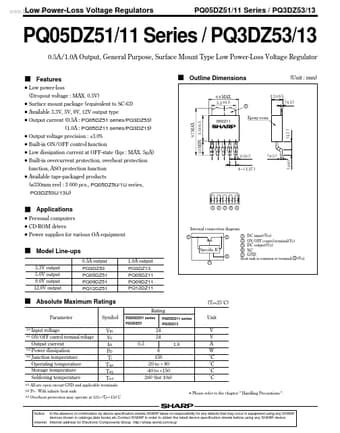

Low Power-Loss www.DataSheet4U.com Voltage Regulators PQ05DZ51/11 Series / PQ3DZ53/13 PQ05DZ51/11 Series / PQ3DZ53/13 0.5A/1.0A Output, General Pur.

📥 Download Datasheet

PQ3DZ53 Datasheet Preview — This datasheet PDF includes multiple part numbers: PQ3DZ53, PQ3DZ13. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PQ3DZ53, PQ3DZ13
Manufacturer: Sharp Electrionic
File Size: 123.42 KB
Datasheet: PQ3DZ13_SharpElectrionic.pdf
Description: (PQ3DZ13 / PQ3DZ53) Surface Mount Type Low Power-Loss Voltage Regulator
Note: This datasheet PDF includes multiple part numbers: PQ3DZ53, PQ3DZ13.
Please refer to the document for exact specifications by model.

Features

* s Outline Dimensions 6.6 MAX. 5.2 ± 0.5 2.3 ± 0.5 (Unit : mm) Low power-loss (Dropout voltage : MAX. 0.5V) q Surface mount package (equivalent to SC-63) q Available 3.3V, 5V, 9V, 12V output type q Output current (0.5A : PQ05DZ51 series/PQ3DZ53) (1.0A : PQ05DZ11 series/PQ3DZ13) q Output voltage p

Applications

* 1 2 3 4 5 Personal computers CD-ROM drives q Power supplies for various OA equipment Internal connection diagram 1 3 s Model Line-ups 3.3V output 5.0V output 9.0V output 12.0V output 0.5A output PQ3DZ53 PQ05DZ51 PQ09DZ51 PQ12DZ51 1.0A output PQ3DZ13 PQ05DZ11 PQ09DZ11 PQ12DZ11 Specific IC 2
