29MU70 COLOR TELEVISION SERVICE MANUAL

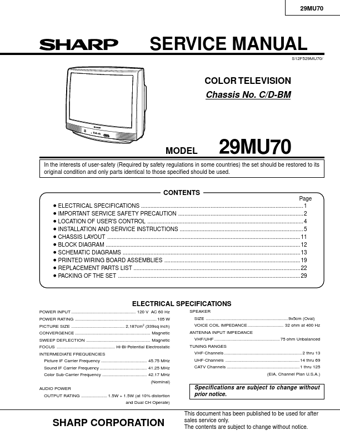

29MU70 SERVICE MANUAL S12F529MU70/ COLOR TELEVISION Chassis No. C/D-BM MODEL 29MU70 In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used. CONTENTS Page » ELECTRICAL SPECIFICATIONS 1 » IMPORTANT SERVICE SAFETY PRECAUTION 2 » LOCATION OF USER'S CONTROL 4 » INSTALLATION AND SERVICE INSTRUCTIONS 5 » CHASSIS LAYOUT 11 » BLOCK DIAGRAM .
