GP1UM27XK, IR Detecting Unit

GP1UM27XK series Under development New product IR Detecting Unit for Remote Control Compact IR Detecting Unit for Remote Control .

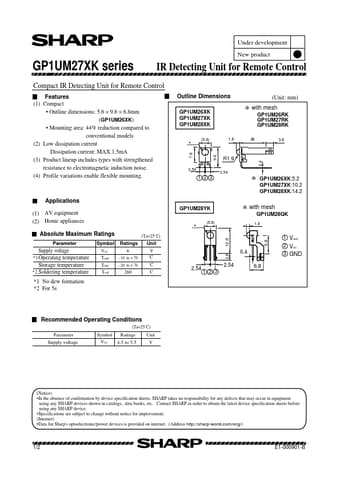

datasheet Preview Page 1 from Datasheet4u.com

GP1UM27XK-Sharp.pdf

GP1UM27XK Datasheet Preview — Preview of GP1UM27XK PDF

Datasheet Details

Part number:

GP1UM27XK

Manufacturer:

Sharp

File Size:

43.23 KB

Description:

IR Detecting Unit

Features

* (1) Compact
* Outline dimensions: 5.6 × 9.6 × 6.8mm (GP1UM26XK)
* Mounting area: 44% reduction compared to conventional models (2) Low dissipation current Dissipation current: MAX.1.5mA (3) Product lineup includes types with strengthened resistance to electromagnetic induction noise.

Applications

* (1) AV equipment (2) Home appliances Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit Supply voltage
* 1Operating temperature Vcc 6 Topr - 10 to + 70 V ˚C Storage temperature Tstg - 20 to + 70 ˚C
* 2 Soldering temperature Tsol 260 ˚C
* 1 No dew formation
* 2
