IS1682 - OPIC Light Detector for X40 Speed CD-ROM Drive

Datasheet Summary

Description

Sharp's IS1682 is OPIC light detectors which are used for pick-up in X40 speed CD-ROM drive.

They improve noise resistance characteristics and enable to read low reflective CD-RW due to built-in RF amp.

Features

  • (1) High speed response(Response frequency: MIN. 45MHz) (Best suited for optical pick-up in X40 speed CD-ROM drive) (2) With built-in RF amplifier 0.15 (Integrates 6-division PIN photodiode and P=0.8 amplifier circuit onto a single chip) 1 2 3 4 5 Terminal connection (3) Compact and thin package 1 VD 6 VE 5.0 (Dimensions: 5.0 x 4.0 x 1.5mm) 2 VA 7 GND (4) Possible to supply custom-made detecting pattern 3 VRF 8 VS (5) Pair use with Sharp's laser diode is recommended. 9 Vcc 4 VB 10 VF Laser diode.

📥 Download Datasheet

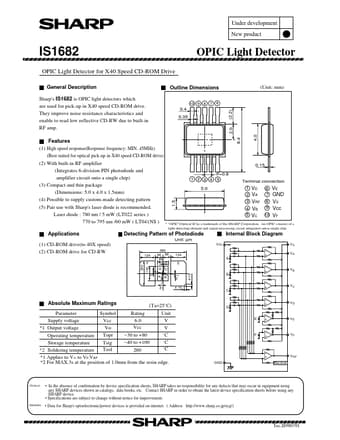

Datasheet preview – IS1682

Datasheet Details

Part number IS1682
Manufacturer Sharp
File Size 53.89 KB
Description OPIC Light Detector for X40 Speed CD-ROM Drive
Datasheet download datasheet IS1682 Datasheet
Additional preview pages of the IS1682 datasheet.

📁 Similar Datasheet

  • IS1681S - IS1681S (Chenbing)
  • IS1684S - Stereo Bluetooth Module (Chenbing)
  • IS1685S - Noise Reduction Mono Headset (ISSC)
  • IS1600 - Optocoupler / Phototransistor (ISOCOM)
  • IS1621N - Bluetooth v2.1+EDR Multimedia (Integrated System Solution)
  • IS1636N - Integrated monolithic chip for Bluetooth mono headset application (ISSC)
  • IS1652N - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1652NM - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1678 - Bluetooth Dual-Mode SoC (Microchip)
  • IS1690S - Bluetooth 3.0 Multi-Speaker Stereo Audio SOC (ISSC)
Other Datasheets by Sharp
  • IS1685 - OPIC Light Detector
  • IS1603 - AMPLIFIER OUTPUT PHOTO IC
  • IS1604 - OPIC Light Detector for 4 times Speed CD-ROM Drive
  • IS1622 - OPIC Light Detector for Recorder Type MD
  • IS1640 - OPIC Light Detector for DVD-ROM/DVD Player
  • IS1U20 - OPIC Light Detector for Infrared Communication
  • IS1U60 - Sensors with 1-Package Design of Remote Control Detecting Functions owing to OPIC
  • IS1U621 - Sensors for Remote Control

Full PDF Text Transcription

Click to expand full text
Under development New product IS1682 OPIC Light Detector for X40 Speed CD-ROM Drive General Description Sharp's IS1682 is OPIC light detectors which are used for pick-up in X40 speed CD-ROM drive. They improve noise resistance characteristics and enable to read low reflective CD-RW due to built-in RF amp. OPIC Light Detector Outline Dimensions 10 9 8 7 6 (Unit: mm) 0.35 2.0 (2.2) 0.4 Features (1) High speed response(Response frequency: MIN. 45MHz) (Best suited for optical pick-up in X40 speed CD-ROM drive) (2) With built-in RF amplifier 0.15 (Integrates 6-division PIN photodiode and P=0.8 amplifier circuit onto a single chip) 1 2 3 4 5 Terminal connection (3) Compact and thin package 1 VD 6 VE 5.0 (Dimensions: 5.0 x 4.0 x 1.
