LM019LC1SXXX - LCD DOT MATRIX GRAPHIC DISPLAY

Product Overview

Sharp

📥 Download Datasheet

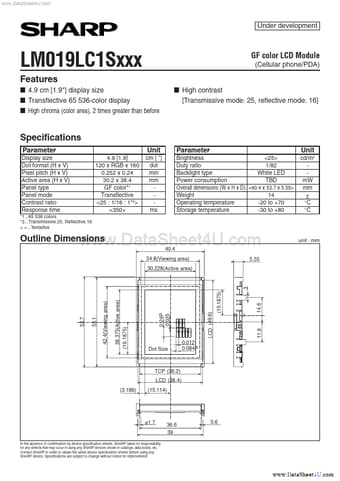

LM019LC1SXXX LCD DOT MATRIX GRAPHIC DISPLAY by Sharp - Datasheet Preview — Datasheet preview – LM019LC1SXXX

Datasheet Details

Part number	LM019LC1SXXX
Manufacturer	Sharp
File Size	141.98 KB
Description	LCD DOT MATRIX GRAPHIC DISPLAY
Datasheet	LM019LC1SXXX Datasheet
Additional preview pages of the LM019LC1SXXX datasheet.

Product details

Features

s 4.9 cm [1.9"] display size s Transflective 65 536-color display s High chroma (color area), 2 times greater than before GF color LCD Module (Cellular phone/PDA) s High contrast [Transmissive mode: 25, reflective mode: 16] Specifications Parameter Display size Dot format (H x V) Pixel pitch (H x V) Active area (H x V) Panel type Panel mode Contrast ratio Response time.
165 536 colors.
2Transmissive:25, Reflective:16 < >Tentative Unit 4.9 [1.9] 120 x RGB x 160 0.252 x 0.24 30.2 x 38.
