LQ035Q3DW02

Display

Sharp

LQ035Q3DW02 General Description

This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, Input FPC, a back light unit. Graphics and texts can be displayed on a 320 × RGB × 240 dots panel with about 262k colors by supplying 18bit .

LQ035Q3DW02 Datasheet (1.07 MB)

LQ035Q3DW02 Datasheet Preview — Preview of LQ035Q3DW02 PDF

Datasheet Details

Part number:

LQ035Q3DW02

Manufacturer:

Sharp

File Size:

1.07 MB

Description:

Display.

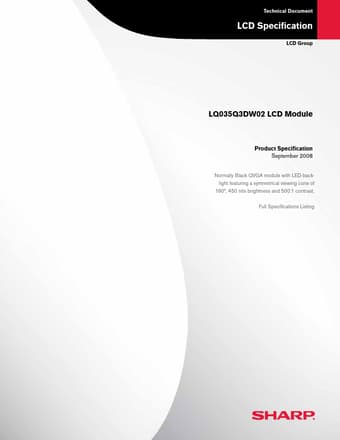

Technical Document LCD Specification LCD Group LQ035Q3DW02 LCD Module Product Specification September 2008 Normally Black QVGA module with LED-back.
