LT0H12M Datasheet - Sharp

LT0H12M, Hologram Laser(1 beam) for Magneto-Optical disk

TEC N 940525 Hologram Laser Hologram Laser(1 beam) for Magneto-Optical disk s .

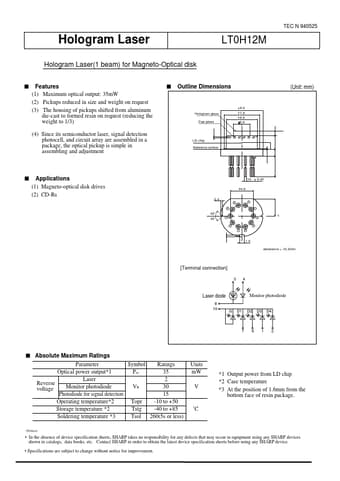

datasheet Preview Page 1 from Datasheet4u.com

LT0H12M_SharpElectrionicComponents.pdf

LT0H12M Datasheet Preview — Preview of LT0H12M PDF

Datasheet Details

Part number:

LT0H12M

Manufacturer:

Sharp

File Size:

39.01 KB

Description:

Hologram Laser(1 beam) for Magneto-Optical disk

Features

* (1) Maximum optical output: 35mW (2) Pickups reduced in size and weight on request (3) The housing of pickups shifted from aluminum die-cast to formed resin on request (reducing the weight to 1/3) (4) Since its semiconductor laser, signal detection photocell, and circuit array are assembled in a pac

Applications

* (1) Magneto-optical disk drives (2) CD-Rs 10 - φ 0.45 φ4.9 0.4 5 6 7 4 45˚ 45˚ 3 8 X 2 1 10 9 Y 1.0 allowance = ±0.2mm [Terminal connection] 3 4 Laser diode 8 10 G D1 Monitor photodiode D2 D3 D4 7 9 1 2 s Absolute Maximum Ratings Parameter Symbol Ratings Optical power output
