PC923L0NIP - OPIC Photocoupler

Product Overview

Sharp

Part number	PC923L0NIP
Manufacturer	Sharp
File Size	277.58 KB
Description	OPIC Photocoupler
Datasheet	PC923L0NIP Datasheet
Note	This datasheet PDF includes multiple part numbers: PC923L0NIP, PC923L0NSZ. Please refer to the document for exact specifications by model.

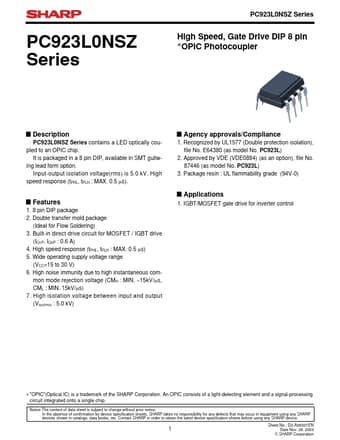

Additional preview pages of the PC923L0NIP datasheet.

PC923L0NSZ Series contains a LED optically coupled to an OPIC chip.

. 8 pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. Built-in direct drive circuit for MOSFET / IGBT drive (IO1P, IO2P : 0.6 A) 4. High speed response (tPHL, tPLH : MAX. 0.5 µs) 5. Wide operating supply voltage range (VCC=15 to 30 V) 6. High noise immunity due to high instantaneous com- mon mode rejection voltage (CMH : MIN.
15kV/µs, CML : MIN. 15kV/µs) 7. High isolation voltage between input and output (Viso(rms) : 5.0 kV).
