PQ09RD11 - 1A Output / General Purpose Low Power-loss Voltage Regulators

📥 Download Datasheet

Datasheet Details

Part number PQ09RD11
Manufacturer Sharp Corporation
File Size 31.06 KB
Description 1A Output / General Purpose Low Power-loss Voltage Regulators
Datasheet download datasheet PQ09RD11 Datasheet

Overview

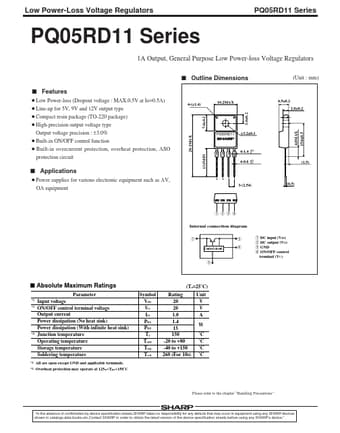

Low Power-Loss Voltage Regulators PQ05RD11 Series PQ05RD11 Series 1A Output, General Purpose Low Power-loss Voltage Regulators s Outline Dimensions.

Key Features

  • ¡Low Power-loss (Dropout voltage : MAX.0.5V at Io=0.5A) ¡Line-up for 5V, 9V and 12V output type ¡Compact resin package (TO-220 package) ¡High-precision output voltage type Output voltage precision : ±3.0% ¡Built-in ON/OFF control function ¡ Built-in overcurrent protection, overheat protection, ASO protection circuit 4-(φ1.4) 7.4±0.2 (Unit : mm) 10.2MAX 3.6±0.2 4.5±0.2 2.8±0.2 29.1MAX PQ05RD11 4-1.4 13.5MIN +0.3 -0 4-0.6 +0.2 -0.1 s.
