PQ12RF11 - 1A Output Low Power-Loss Voltage Regulators

Datasheet Summary

Features

  • ¡Compact resin full-mold package ¡Low power-loss (Dropout voltage:MAX.0.5V) ¡ Built-in ON/OFF control terminal (PQ05RF1/PQ05RF11 series) ¡Built-in output voltage minute adjustment terminal (Critical rate of ripple rejection is improved. ) (PQ05RF1V series) ¡Lead forming type (PQ05RF1A/1B series) is also available. s Outline Dimensions 10.2MAX 4.5±0.2 (Unit : mm) 2.8±0.2 7.4±0.2 29.1MAX PQ05RF1 4-1.4 +0.3 -0 13.5MIN 4-0.6 +0.2 -0.1 s Model Line-ups Output voltage Output voltage precisi.

📥 Download Datasheet

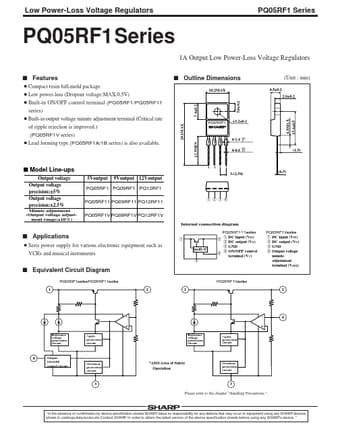

Datasheet preview – PQ12RF11
