HD60SB100 - 60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier

This page provides the datasheet information for the HD60SB100, a member of the HD60SB60 60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier family.

Datasheet Summary

Features

  • s.
  • Glass passivated chip.
  • Low reverse leakage current.
  • KEY.

📥 Download Datasheet

Datasheet preview – HD60SB100

Datasheet Details

Part number HD60SB100
Manufacturer Sheier
File Size 470.77 KB
Description 60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier
Datasheet download datasheet HD60SB100 Datasheet
Additional preview pages of the HD60SB100 datasheet.

📁 Similar Datasheet

  • HD60N03 - 30V N-Channel MOSFET (HAOLIN)
  • HD6.8Mxx - (HD Series) HIGH-FREQ ALUMINUM ELECTROLYTIC (NTE Electronics)
  • HD61100A - LCD Driver (Hitachi)
  • HD61102 - Dot Matrix Liquid Crystal Graphic Display Column Driver (Hitachi)
  • HD61103A - Dot Matrix Liquid Crystal Graphic Display 64-Channel Common Driver (Hitachi)
  • HD61200 - LCD Driver (Hitachi)
  • HD61202 - Dot Matrix Liquid Crystal Graphic Display Column Driver (Hitachi)
  • HD61202U - Dot Matrix Liquid Crystal GraphicDisplay Column Driver (Hitachi Semiconductor)
  • HD61203 - Dot Matrix Liquid Crystal Graphic Display 64-Channel Common Driver (Hitachi)
  • HD61203U - (Dot Matrix Liquid Crystal Graphic Display 64-Channel Common Driver) (Hitachi Semiconductor)
Other Datasheets by Sheier
  • HD60SB120 - 60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier
  • HD60SB60 - 60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier
  • HD60SB80 - 60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier

Full PDF Text Transcription

Click to expand full text

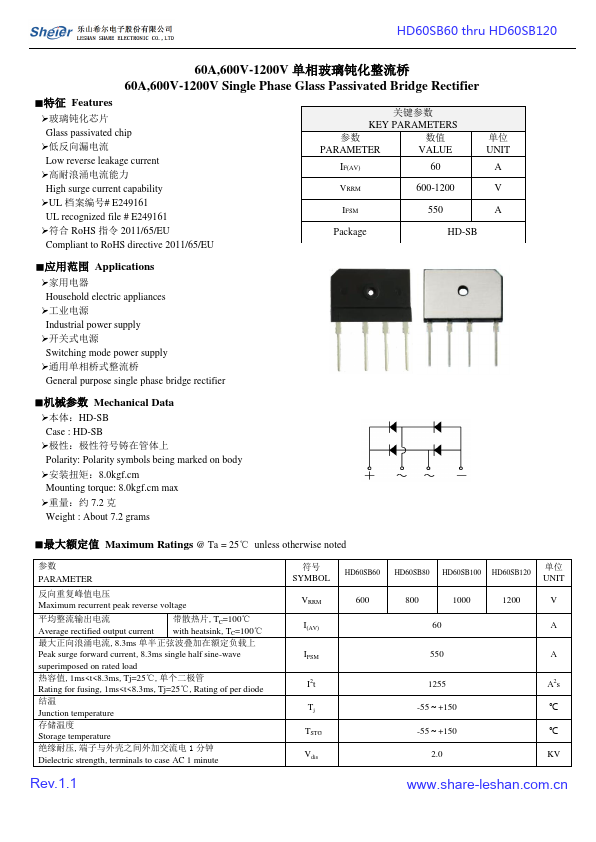

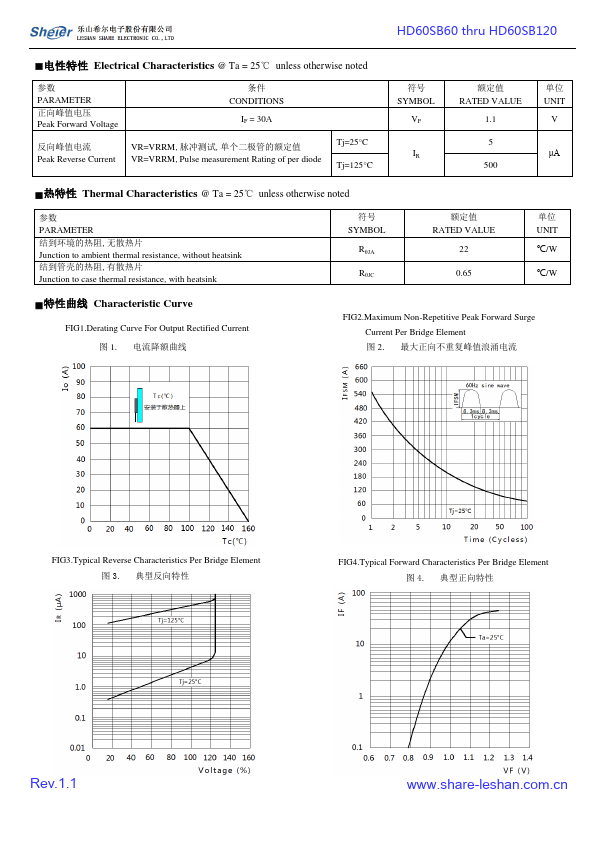

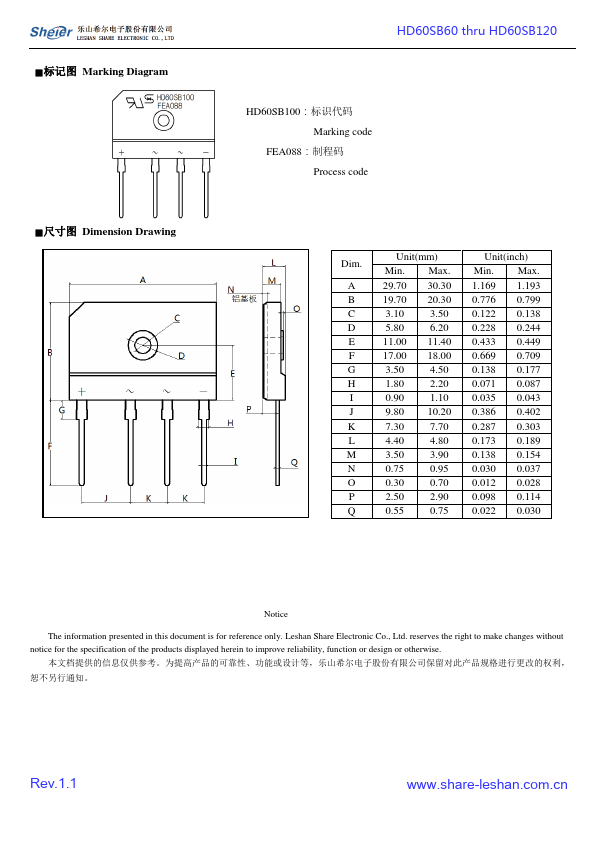

HD60SB60 thru HD60SB120 60A,600V-1200V 60A,600V-1200V Single Phase Glass Passivated Bridge Rectifier ■ Features  Glass passivated chip  Low reverse leakage current  KEY PARAMETERS PARAMETER VALUE IF(AV) 60 UNIT A High surge current capability VRRM 600-1200 V UL # E249161 UL recognized file # E249161  RoHS 2011/65/EU IFSM Package 550 A HD-SB Compliant to RoHS directive 2011/65/EU ■ Applications  Household electric appliances  Industrial power supply  Switching mode power supply  General purpose single phase bridge rectifier ■ Mechanical Data ：HD-SB Case : HD-SB ： Polarity: Polarity symbols being marked on body ：8.0kgf.cm Mounting torque: 8.0kgf.cm max ： 7.2 Weight : About 7.
