S1FD20C60 - 20A/600V MOSFET

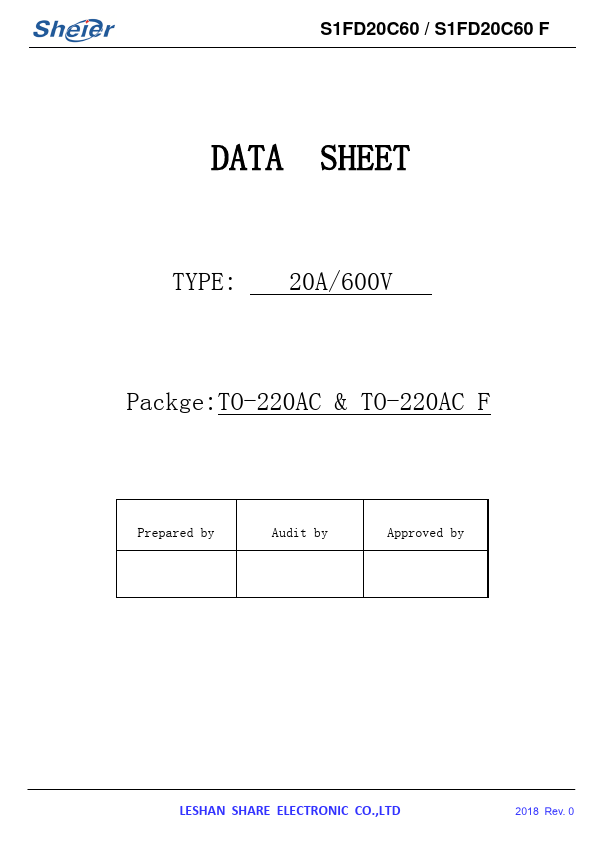

The S1FD20C60 by Sheier is a 20A/600V MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	S1FD20C60
Manufacturer	Sheier
File Size	371.44 KB
Description	20A/600V MOSFET
Datasheet	S1FD20C60-Sheier.pdf

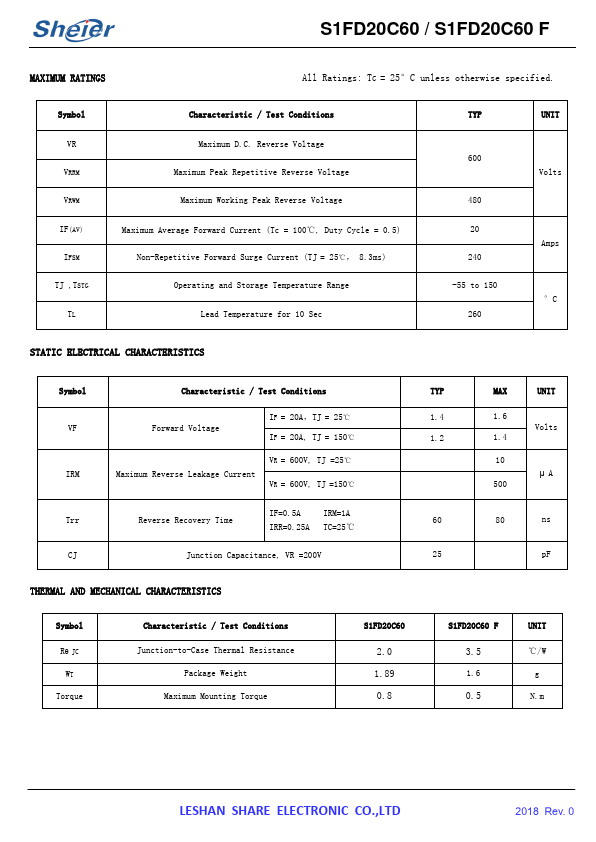

Additional preview pages of the S1FD20C60 datasheet.

Ultrafast Recovery Times.
Soft Recovery Characteristics.
Popular TO-220AC & TO-220AC F Package.
Low Forward Voltage.
Low Leakage Current.
Avalanche Energy Rated Product Benefits:.
Low Losses.
Low Noise Switching.
Cooler Operation.
Higher Reliability Systems.

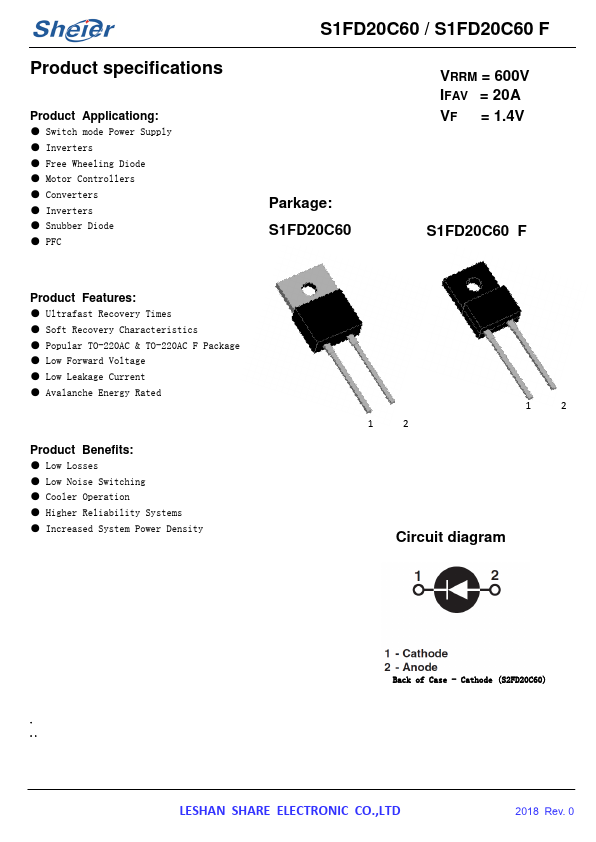

Increased System Power Density 1 2 1 2 Circuit diagram Back of Case - Cathode (S2FD20C60) . . . LESHAN SHARE.
