SGM5223, SPDT Analog Switch

SGM5223 0.5Ω, Ultra Low On-Resistance, Dual, SPDT Analog Switch GENERAL .
FEATURES The SGM5223 is a dual single-pole/double-throw (SPDT) analog switch that is designed to operate from a single 1.

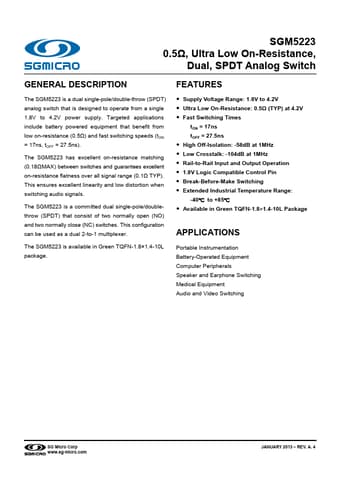

datasheet Preview Page 1 from Datasheet4u.com

SGM5223_ShengbangMicroelectronics.pdf

SGM5223 Datasheet Preview — Preview of SGM5223 PDF

Datasheet Details

Part number:

SGM5223

Manufacturer:

Shengbang Microelectronics

File Size:

505.11 KB

Description:

SPDT Analog Switch

Applications

* include battery powered equipment that benefit from low on-resistance (0.5Ω) and fast switching speeds (tON = 17ns, tOFF = 27.5ns). The SGM5223 has excellent on-resistance matching (0.18ΩMAX) between switches and guarantees excellent on-resistance flatness over all signal range (0.1Ω TYP). This ensu
