MCO-1500A TTL/HCMOS Crystal Oscillators

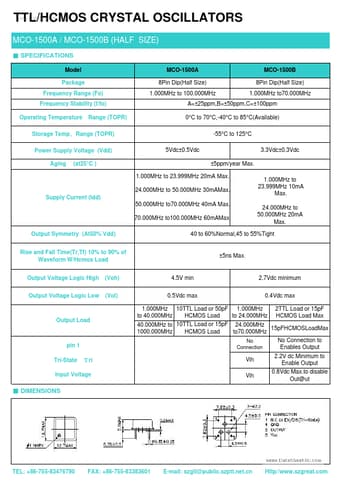

www.DataSheet4U.com TTL/HCMOS CRYSTAL OSCILLATORS MCO-1500A / MCO-1500B (HALF SIZE) SPECIFICATIONS Model Package Frequency Range (Fo) Frequency Stability (f/fo) Operating Temperature　Range (TOPR) Storage Temp．Range (TOPR) Power Supply Voltage (Vdd) Aging 　(at25°C ) 5Vdc±0.5Vdc ±5ppm/year Max. 1.000MHz to 23.999MHz 20mA Max. 24.000MHz to 50.000MHz 30mAMax. Supply Current (Idd) 50.000MHz to70.000MHz 40mA Max. 70.000MHz to100.000MHz 60mAMax Output Symmetry (At50% Vdd) Rise and Fall Time(Tr,T.

MCO1500A_ShenzhenGreatElectronics.pdf

This datasheet PDF includes multiple part numbers: MCO-1500A, MCO1500A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MCO-1500A, MCO1500A

Manufacturer:

Shenzhen Great Electronics

File Size:

78.69 KB

Description:

Ttl/hcmos crystal oscillators.

Note:

This datasheet PDF includes multiple part numbers: MCO-1500A, MCO1500A.
Please refer to the document for exact specifications by model.
